Facilities

Equipment

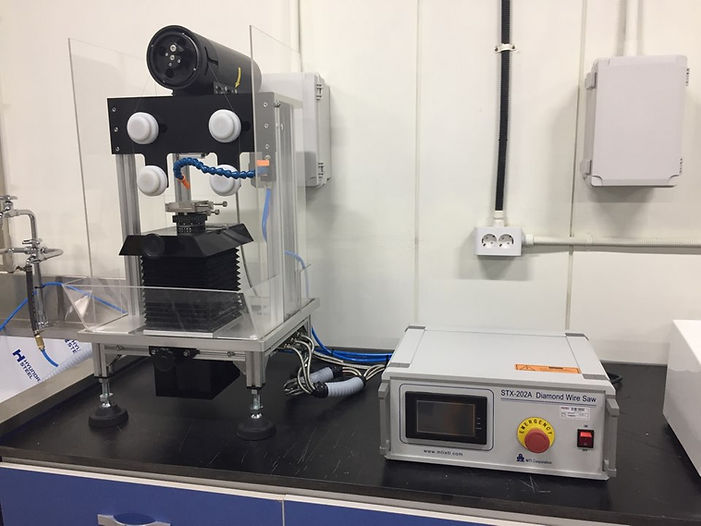

Diamond wire saw

Sample cutting

Sample Stage



-  Z axis: 50mm,  automatically controlled by digital panel

-  Y axis: 50mm,  automatically controlled by digital panel

- Two dimension sample stage built in  360° degree horizontal rotating and +/-10° tilting



Cutting parameters



- Feed Speed: 0.01 mm/min to 40 mm/min adjustable

- Back Speed: 1  mm/min to 100 mm/min adjustable

- Spooler spin speed: 1-260 RPM adjustable

- Cutting depth: 0.1 - 50mm

- Positional accuracy: +/- 0.01 mm
